Features
Model |

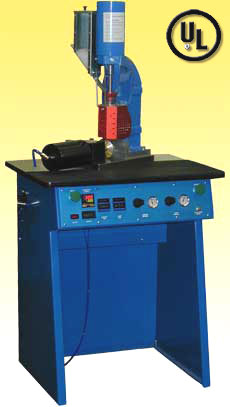

AB-400-4 |
| Ram Diameter | 9/16"
-11/16" - 3/4" |
| Shot Capacity | 1/4oz
- 1/3oz - 1/2oz |
| Injection Pressure @ 125PSI | 6333PSI
- 4243PSI - 3568PSI |
| Injection Pressure - 2-Stage Cylinder @ 125PSI | 12,228PSI-
8209PSI - 6203 PSI |
| Voltage Required | 120
Volt 50/60 Hz - (220 Optional) |
| Heat Capacity | 600
Watts |
Heat
Capacity Nozzle Optional |
100
Watts |
| Temperature Range |
100 - 600 Degress Fahrenheit
|
| Mold Height | 3" |
| Sprue Center Line | 1" |
| Daylight Between Mold Opening |
2/1/4" |
| Cycle Time | 5-99
Seconds |
| Nozzle Orifice | 0.093 |
| Hopper Capacity | 7.85oz
(220grams) |
| Machine Dimension | 28"
x 21" x 61" |
| Machine Weight | 200lbs.
(91KG) |
