Features
Model |

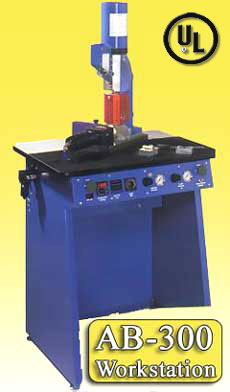

AB-300-4 |
Clamp Force (Lbs.) | 4000/5500
Lbs. |
Shot Capacity | 1/4oz
(6 grams) |
Injection Pressure @ 125 PSI | 6333
PSI |
Voltage Required | 120
Volt 50/60 Hz |
Heat Capacity | 400
Watts |
Temperature Range |
100 - 600 Degress Fahrenheit
|
Mold Height | 2/1/2" |
Sprue Center Line | 7/8" |
Daylight Between Mold Opening | 2"
to 2/1/4" |
Maximum Molding Area | 3
sq. inches |
Cycle Time | 5-99
Seconds |
Ram Diameter | 9/16
(14.28mm) |
Nozzle Orifice | 0.093 |
Hopper Capacity | 7.85oz
(220grams) |
Machine Dimension | 28"
x 21" x 55" |
Machine Weight | 157.3lbs.
(71.5KG) |
